The below error can happen when you run any kind of a process that uses JDBC:

ORA-28267: Invalid Namespace Value In SOA Suite

This is a bug!
The cause of the problem is when using Oracle JDBC Driver file (ojdbc6dms.jar) and calling a DB object (procedure, function etc…) that issues SQL over a DB link from 11g to 10g DB.

There is no patch for that at the moment.
I found a workaround, that was approved by oracle:

Under the below folders, replace the ojdbc6dms.jar file with ojdbc6.jar file:

You can find the ojdbc6.jar driver in the below link:

It is also suppose to be under $MID_HOME/wlserver_10.3/server/lib. You can just copy it from there.

There is one exception: No JDBC metrics will be produced. If you need it, you will have to open SR.

Good Luck!

Read Full Post »

While trying to run a deployed composite you are getting the below error:

java.lang.Exception: oracle.sysman.emSDK.webservices.wsdlapi.SoapTestException: oracle.fabric.common.PolicyEnforcementException: PolicySet Invalid: WSM-02557 oracle.wsm.policymanager.accessor.BeanAccessor The documents required to configure the Oracle Web Services Manager runtime have not been retrieved from the Policy Manager application (wsm-pm), possibly because the application is not running or has not been deployed in the environment. The query “&(policysets:global/%)(@appliesTo~=”WS-Client()”)” is queued for later retrieval. at oracle.sysman.emas.model.wsmgt.WSTestModel.invokeOperation(WSTestModel.java:813) at oracle.sysman.emas.view.wsmgt.WSView.invokeOperation(WSView.java:385) at oracle.sysman.emas.view.wsmgt.WSView.invokeOperation(WSView.java:302)

This error is a bit tricky because you might consider it as a bug.
There are 2 possible reasons for this error:

  1. Mismatch or missing listen address in the Admin/Managed server.
  2. The local host(pc) name is different than the host name you’ve defined while installing SOA Suite (or other Middleware components).

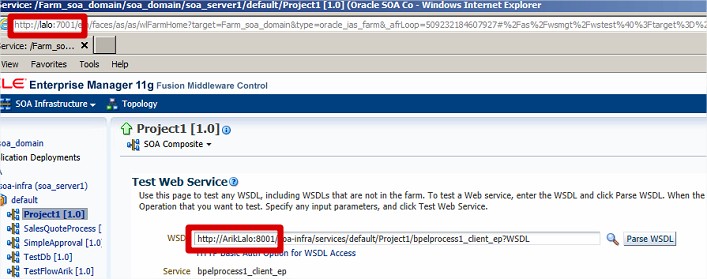

    You can see example for that while trying to test you processHost

Both reasons causes the server to NOT listen the correct address.
The solution, is to update the host name listen address under the installed Admin/Managed servers:
Go to WL console -> Environment -> Servers -> Under the configuration tab click the Admin server -> fill the Listen Address.
Repeat it for all other managed servers, and restart the servers.

Note: If there is a mismatch between your host and PC name, you might consider to fill out the local host IP address and not the DNS.

Good Luck

Read Full Post »

When you are using one of the following Adapters – Database/Oracle Application/AQ, sometimes (randomly) you might get an error like:

“Exception occured when binding was invoked. Exception occured during invocation of JCA binding: “JCA Binding execute of Reference operation ‘GetData’ failed due to: Stored procedure invocation error. Error while trying to prepare and execute the BPEL_GETDATA.PROCEDURE$GET_ DATA API. An error occurred while preparing and executing the BPEL_GETDATA.PROCEDURE$GET_ DATA API. Cause: java.sql.SQLTimeoutException: ORA-03111: break received on communication channel Check to ensure that the API is defined in the database and that the parameters match the signature of the API. This exception is considered retriable, likely due to a communication failure. Because the global transaction is rolling back the invoke must be retried in a new transaction, restarting from the place of the last transaction commit. To classify it as non-retriable instead add property nonRetriableErrorCodes with value “1013” to your deployment descriptor (i.e. weblogic-ra.xml). “. The invoked JCA adapter raised a resource exception. Please examine the above error message carefully to determine a resolution.”


Read Full Post »

It is very problematic and annoying when you didn’t change anything on your WebLogic server (like your manage server IP), and still you get the following error:




Read Full Post »

I’ve noticed something very interesting in the log file when the ‘GET’ operation stopped working (Poll files from remote server).
I found some errors like:

No Data to process

Error in listing files in the remote directory.
Unable to list file in remote directory.
Please make sure that the ftp server settings are correct

Caused by: BINDING.JCA-11426
Unable to enter passive mode

File Adapter testTab PollWork::run exiting, Worker thread will die


Read Full Post »

While running Bpel processes you might run into the following errors:

Transaction Rolledback.: weblogic.transaction.internal.TimedOutException: Transaction timed out



Read Full Post »

The Weblogic installed in this demo is ‘Oracle WebLogic Server + Coherence – Package Installer 10.3.6’ (32-bit JVM)

You can find Weblogic Installation here:

Please follow the next steps in order to install the WebLogic Server:


Read Full Post »
