As you probably know, the “Table” component allows you to use an out of the box filtering.
A while ago, I’ve been asked to execute a table filtering programmatically – that is, use a java code to automatically populate the filter.
In my current example I’m using a button to perform a filtering action. Of curse you can use the code in many other ways,

Well, here are the steps:

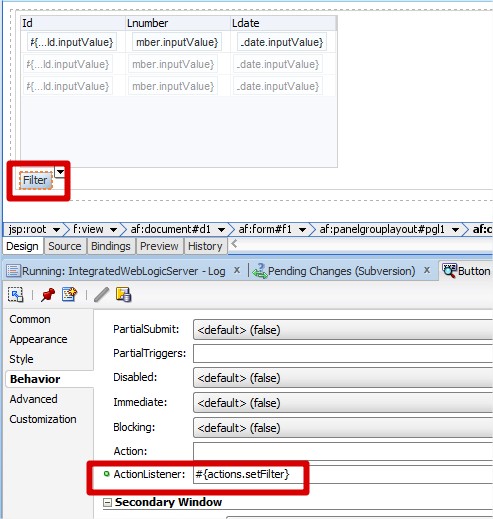

First, add a binding to the table with getter & setter:

Second, drag a new button and create an “ActionListener” with the following code (I’ve copied the full class):

package adf;

import java.util.HashMap;
import java.util.Map;

import javax.faces.event.ActionEvent;

import oracle.adf.view.rich.component.rich.data.RichTable;
import oracle.adf.view.rich.context.AdfFacesContext;
import oracle.adf.view.rich.event.QueryEvent;
import oracle.adf.view.rich.model.FilterableQueryDescriptor;

public class action {
    private RichTable tblBind;

    public action() {
    }

    public void setFilter(ActionEvent actionEvent) {
        RichTable tbl = this.getTblBind();
        FilterableQueryDescriptor filterQD = (FilterableQueryDescriptor)tbl.getFilterModel();
        Map filterCriteria = filterQD.getFilterCriteria();
        Map<String, String> data = new HashMap<String, String>();
        data.put("Id","888 OR 999");
        filterCriteria.putAll(data);
        getTblBind().queueEvent(new QueryEvent(getTblBind(), filterQD));
        AdfFacesContext.getCurrentInstance().addPartialTarget(this.getTblBind());
    }

    public void setTblBind(RichTable tblBind) {
        this.tblBind = tblBind;
    }

    public RichTable getTblBind() {
        return tblBind;
    }
}

And the result, when pressing the “Filter” button:

Note the following:

1. The code refers to the table binding we’ve created earlier
2. The Mapping points to the table’s column name, in my case: “Id”
3. For the example, I used filter with 1 “OR” operator, You can use more then 1 and also other operators, like “AND”

That’s it.
Good Luck
